Access Control Systems

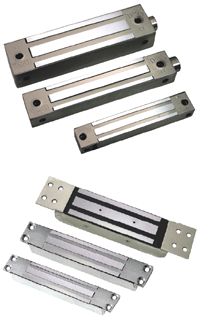

Diax External Magnetic Locks

  • Full Range
  • 180 to 800kg Holding
  • 12 & 12/24 VDC
  • Monitored Option
  • High Quality
  • 5 Year Warranty
  • Accessories Available


  • Voltage: 12/24VDC (12VDC 130, 400 & 750)
  • Current, ES/EM Series: 630mA @ 12VDC, 313mA @ 24VDC
  • Current VREA800: 800mA @ 12VDC, 400mA @ 24VDC
  • Holding Force: ES/EMI180 UP TO 130 kg, ES/EMI300 UP TO 300 kg, ES/EMI400 UP TO 400 kg, ES/EMI500 UP TO 500 kg, ES/EMI800 UP TO 800 kg
  • Finish: Stainless Casing
  • Monitoring: Changeover for "Locked"

Product Code

  • EM180: Mortice External Magnet, 180Kg, 12/24VDC
  • ES180: Surface External Magnet, 180Kg, 12/24VDC
  • EM300: Mortice External Magnet, 300Kg, 12/24VDC
  • ES400: Surface External Magnet, 400Kg, 12/24VDC, Monitored
  • EM500: Mortice External Magnet, 500Kg, 12/24VDC
  • ES500: Surface External Magnet, 500Kg, 12/24VDC, Monitored
  • VREA800: Surface External Magnet, 800Kg, 12/24VDC

To view the brochure for the CDV Diax External Magnetic Locks Click here
